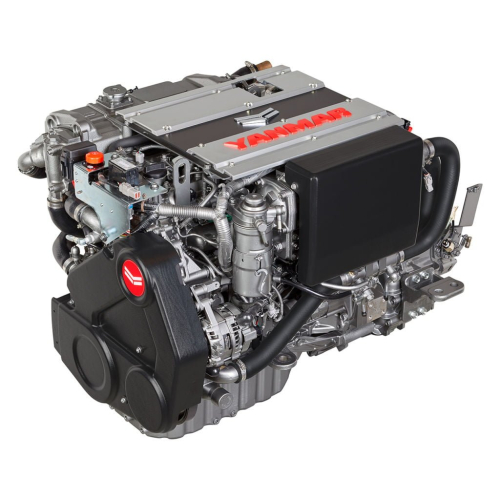

Buy New Yanmar 4LV170 (Z) 170HP Inboard Diesel Engine Online
Featuring the latest engine technologies, the 4LV Series is undoubtedly cleaner, quieter, and produces more torque & acceleration than any other engine in its class. The 4LV is the ideal solution for sailing yachts over 50 ft, super yacht tenders, small motorboats and light duty commercial vessels.
The 4LV proves to be an extremely efficient engine without any compromise on quality. Featuring the newest system in common-rail technology, the mid-range engines deliver maximum performance and reliability, while maintaining minimal fuel consumption and exceptionally low noise & emission levels. By exceeding the strict EPA Tier 3 and EU RCD Stage 2 emission regulations, the engines feature virtually smoke and odor free operation. Equally, the 4LV doesn’t disappoint in performance. The 2.8 L displacement delivers a powerful low-end torque performance. This results in a stunning acceleration and really sets these engines apart from others in their power range. To ensure support of advancing marine technologies, direct connectivity to NMEA and J1939 CAN-bus networks has been purpose engineered into the 4LV range, allowing future-proofed integration to any multifunction bridge display.
Specifications
Rated Output
125 kW / 170 mhp
Rated Speed
3500 rpm
Displacement
2.755 L / 168 cu. in
No. of cylinders
4 cylinders
Cylinder Bore x Stroke
92 mm x 103.6 mm / 3.6 in x 4 in
Combustion system
Direct Injection, Denso Common Rail System
Aspiration
Turbocharged & Intercooled
Alternator
Denso 12V – 130A
Dry weight without gear
334 kg / 736 lbs
Dimensions
1151 mm x 755 mm x 772 mm
Controls
Mechanical (optional – VC10 system)
Certifications
RCD 2 EPA Tier 3 EPA Tier 3C BSO II EMC SOLAS
