Description

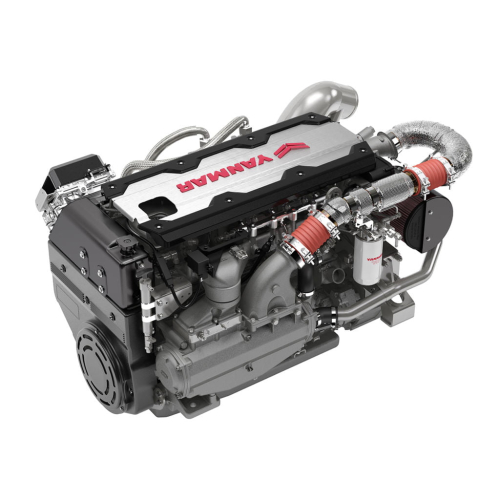

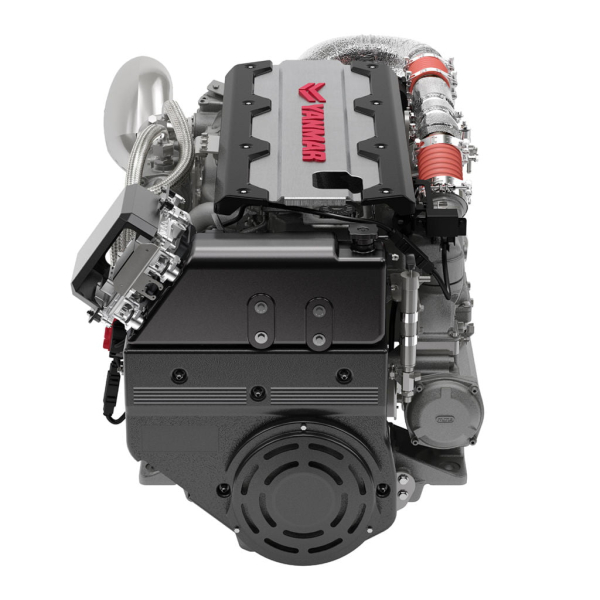

Buy New Yanmar 6LF550 550HP Inboard Diesel Engine Online.
The 6LF engine is a compact and powerful common rail diesel engine, perfect for planing and semi-planing vessels, both recreational and light duty commercial. Controlled by the YANMAR VC20 system, it expands YANMAR brand’s line with higher horsepower, providing the largest common rail, electronically managed marine diesel line-up in the industry.
The YANMAR 6LF meets EPA Tier 3 and EU RCD Stage 2 emissions regulations while also providing a wide range of fuel compatibility to meet requirements for various government service applications.
The 6LF has been customized with YANMAR’s proprietary fuel mapping and a larger mixing elbow for reliable and consistent output performance. It is custom engineered to offer direct connectivity to NMEA and J1939 CAN-bus networks. It comes available with a number of standard and optional features, including single- and 2-pole installation, various ZF gears, and custom secondary alternator options to meet nearly any complex application.
Specifications: Buy New Yanmar 6LF550 550HP Inboard Diesel Engine Online
Rated Output
404 kW / 550 mhp
Rated Speed
3000 rpm
Displacement
6.728 L / 411 cu. in
No. of cylinders
6 cylinders
Cylinder Bore x Stroke
104 mm x 132 mm / 4.10 in x 5.20 in
Configuration
In-line, 4-stroke, vertical, water-cooled diesel engine Combustion system
Direct Injection, Bosch Common Rail System
Aspiration
Turbocharged & Intercooled
Alternator 12V – 90A, 24V – 70A
Dry weight without gear
780 kg / 1720 lbs
Dimensions
1519 mm x 893 mm x 881 mm
Controls
Electronic
Certifications
RCD 2 IMO Tier 2 EPA Tier 3 EMC
